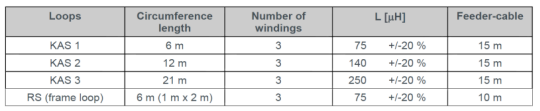

Ready-to-use Induction Loops come in the following sizes.

Other sizes are available on request.

The induction loops are usually installed in a square or rectangular shape. The installation in asphalt
or concrete ground requires a saw slot with the following geometric dimensions:
depth: approx. (40 – 70) mm, width: approx. (8 - 9) mm.
Depending on circumference and shape of the loop, different values of inductivity are obtained.
Inductances of the loops above are within the optimal range of operation (60 – 300) μH for for the highest sensitivity.
